ZX1200/1500型全自动筒子脱水机
ZX1200/1500 Full-automatic package hydro-extractors

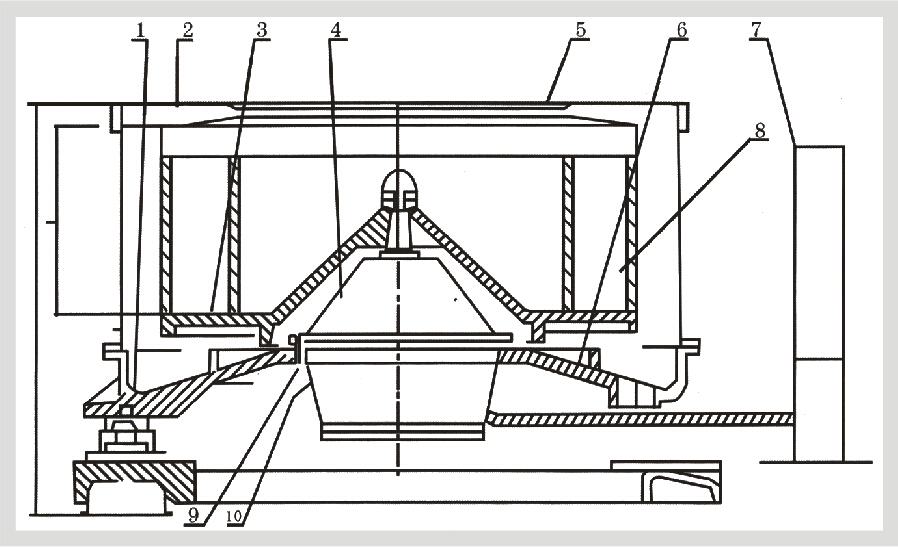

ZX1200/1500型全自动筒子结构图
Structural diagram of ZX1200/1500 full-automatic hydro-extractors


1. 滑动支承组件/Sliding bearing assembly        2. 外壳/Enclosure
3. 转鼓组件/Rotary drum unit                    4. 驱动电机/Drive motor
5. 上盖/Top cover                               6. 底盘/Chassis
7. 电控箱/Electrical controller                 8. 筒子管/Bobbin tube
9. 上油咀/Upper nozzle                          10. 下油咀/Lower nozzle

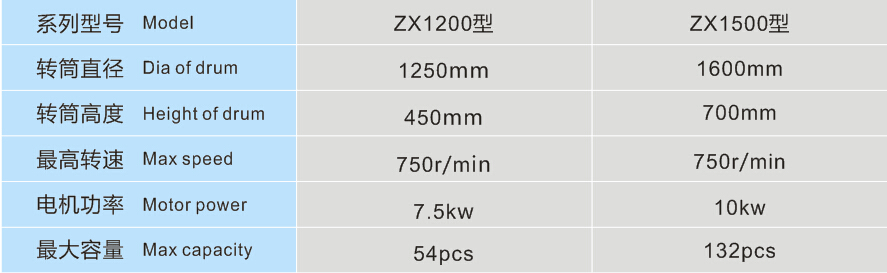

技术参数  Technical Specifications
